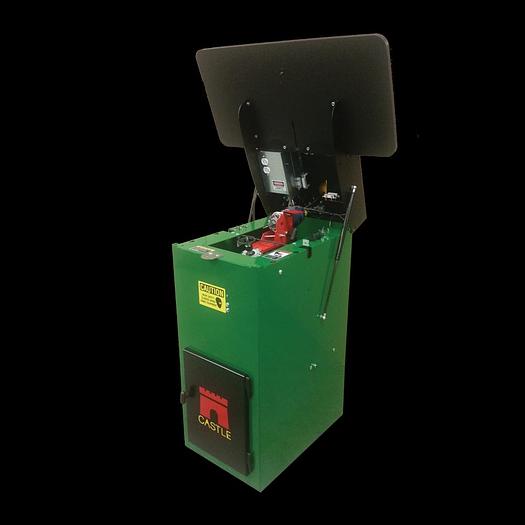

Castle Inc. Castle TSM-22 Pocket Drill machine, Currently in Stock

Castle Inc. Castle TSM-22 Pocket Drill machine, Currently in Stock

$5,299 (USD)

Location:Tracy, CA

orCall 209 832-0100

Description

The TSM-22 is our best-selling pocket cutting machine - its design and durable build has made it a clear favorite among professionals in cabinet making, furniture making, and woodworking. The TSM-22 clamps the stock, routs a pocket, and drills a pilot hole with a tap of the foot pedal, all in about 1.5 to 2 seconds per cycle.

The TSM-22 creates fast, strong, stable joints, is easy to use, and requires minimal maintenance. Use the TSM-22 with composites, panel, hard or soft wood. Requiring minimal training, the TSM-22 uses standard 110V electric, and is ready-to-go upon delivery.

Features and Benefits Include:

  • Cuts the Castle low-angle pocket, for strong, stable, tight, and superior joints
  • Designed for professional, production joinery for maximum throughput of stackable parts
  • Low-angle pockets minimize the need for clamping during assembly
  • Cuts pocket and pilot hole in a single cycle, increasing throughput and decreasing material damage and waste
  • Footswitch with automated operation that’s simple and easy to use
  • Adjustable for different sized webs
  • Standard machine height with a small footprint - easy to fit into any shop
  • Easy maintenance and bit changing
  • Minimal shop air required: 85 psi
  • Integrated, 4” dust port for minimizing dust and debris
  • Requires only basic, 110V power
  • TSM-22 comes ready to work, requiring minimal assembly, for quick integration into any existing production process or work-flow

Technical Specifications:

  • Router: Bosch 2.0hp #1617
  • Drill: Bosch Colt 1.0hp #PR20EVS
  • Router bit: Premium 3/8” Solid Carbide, Rough Mill
  • Drill bit: 9/64” Brad and Spur Premium TiN-Coated Bit
  • Power req: 110V, 15 amps
  • Air req: 85 psi
  • Bosch 1617 Router 2hp for pocket cutting
  • Bosch Colt Router 1hp for drilling pilot hole
  • Basic footprint: 31.5″ depth x 30″ width x 48" high
  • Working height: 36.5″
  • 4” integrated dust port
  • Manufactured in USA


Specifications

ManufacturerCastle Inc.
ModelCastle TSM-22 Pocket Drill machine
ConditionNew
