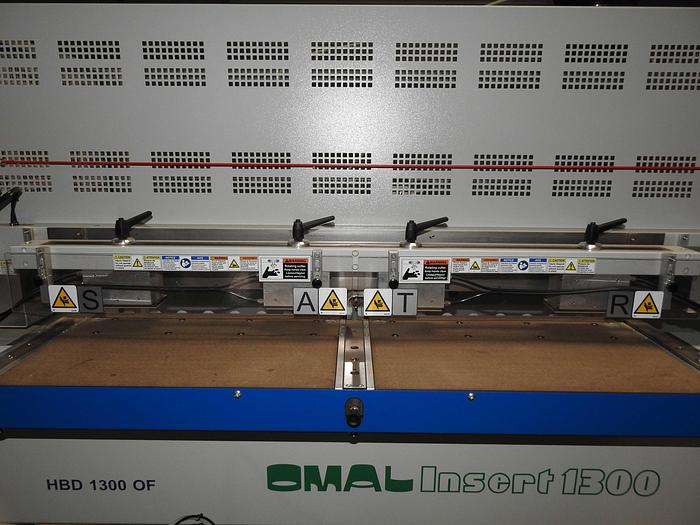

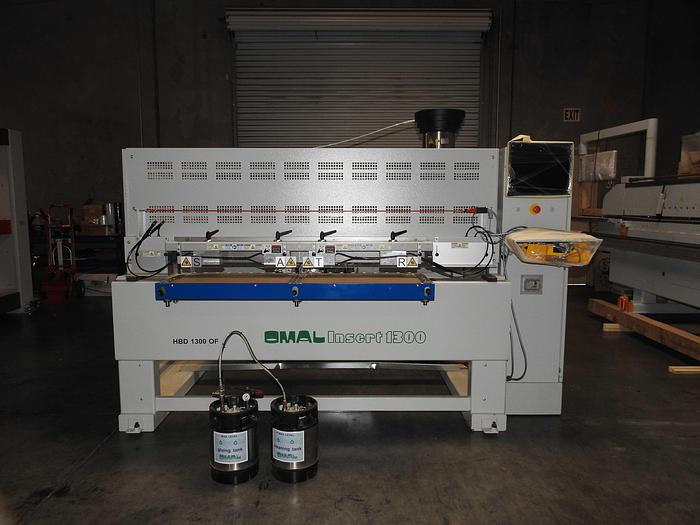

2021 SCM GROUP/OMAL HBD-1300OF Demo Machine HBD-1300OF

2021 SCM GROUP/OMAL HBD-1300OF Demo Machine HBD-1300OF

$47,900 (USD)

Tracy, CA

orCall 209 832-0100

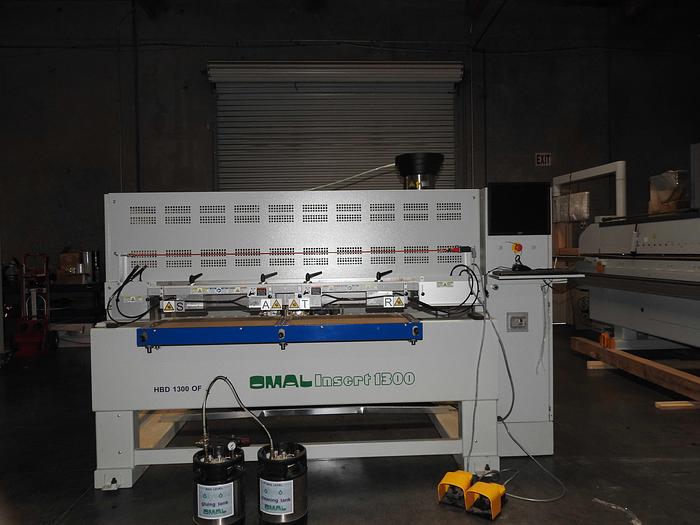

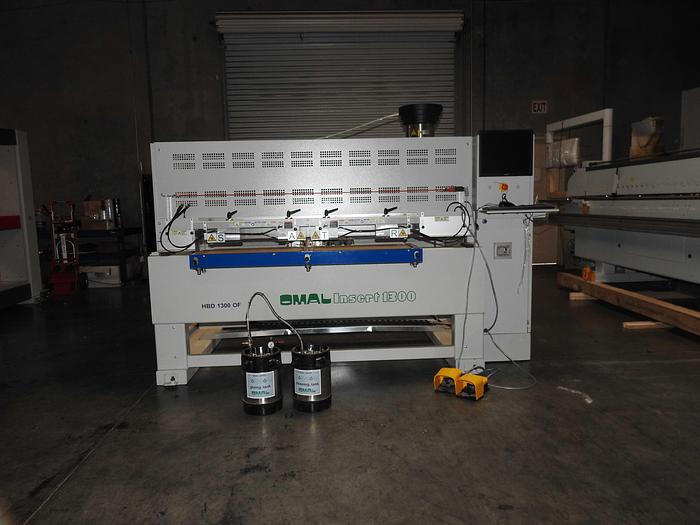

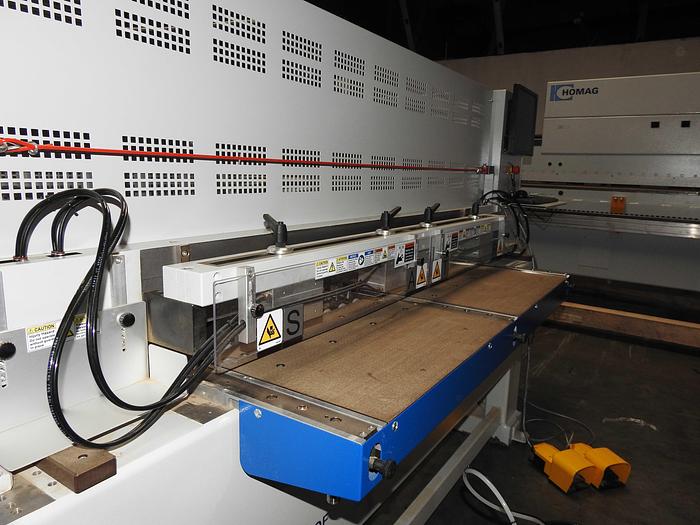

NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. with Laser measuring.

X-axis work area,1300 mm (51").  Y-axis, (depth) max. 40 mm (1.57"),  Z-axis (thickness manual setting) max. 40 mm (1.57") - positioning speed 164 FPM (50 MPM).

Width LASER sensor to automatically measure width of panel and calculate number of dowels based on a template file. Template file can be modified from the list. (Laser tolerance subject to edge integrity, straight edge +/- 0.2mm)

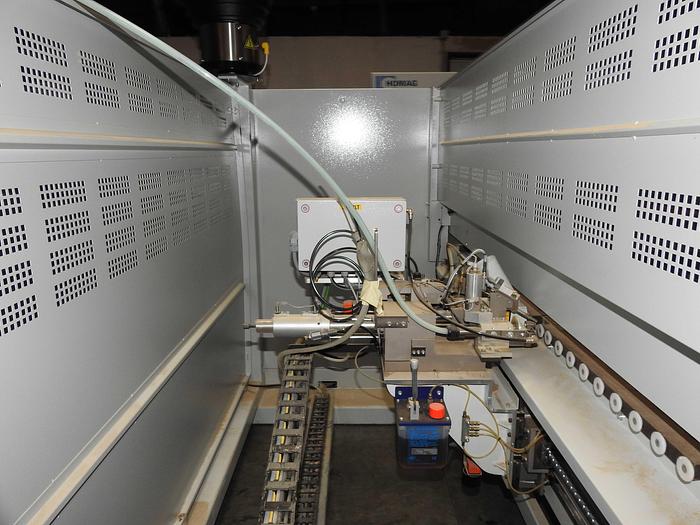

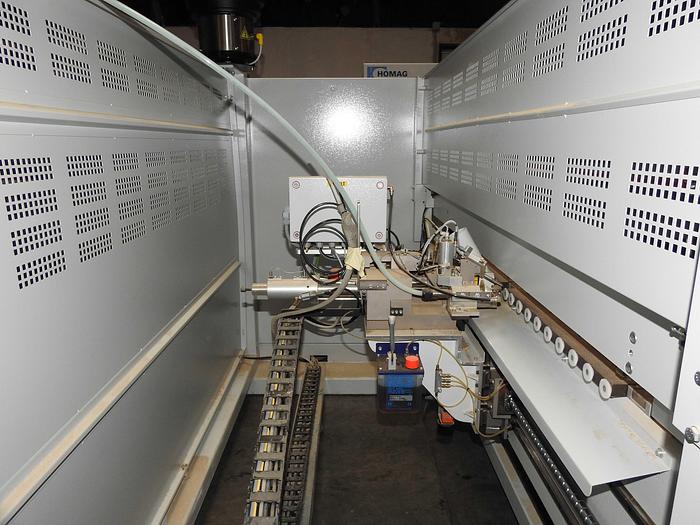

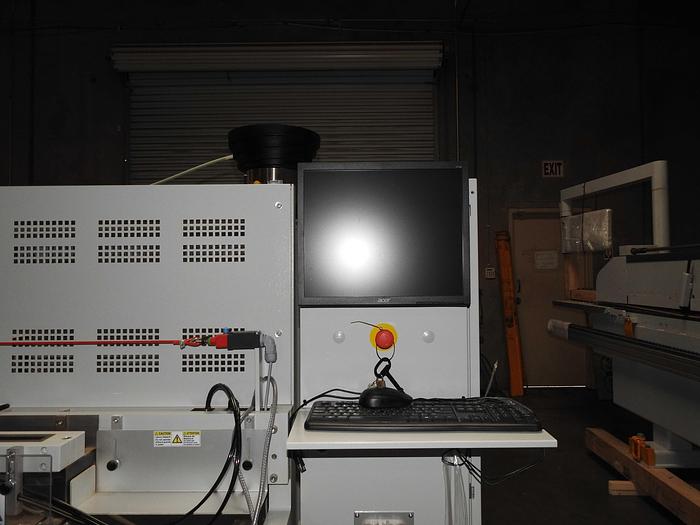

PC Controller with Windows operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. (1) 1-HP NC controlled horizontal drilling unit,  and (1) dowel insertion unit.

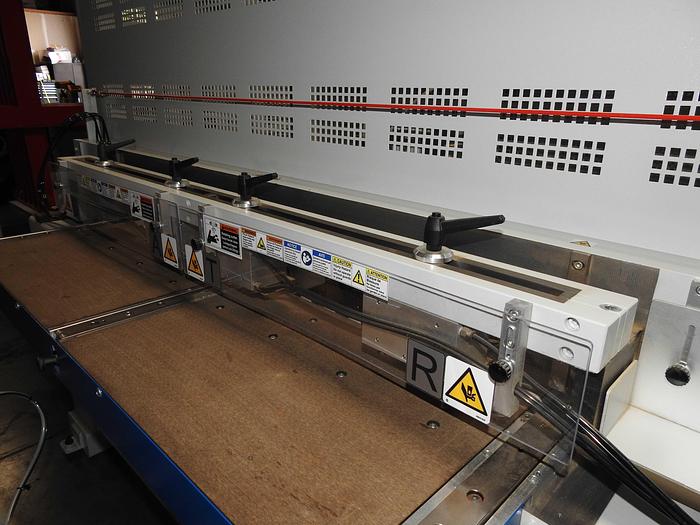

(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic hold-down clamps.

Above specs taken from literature, internet and inspection; and thought to be accurate. As always please take advantage of the inspection period to verify.


ManufacturerSCM GROUP/OMAL HBD-1300OF Demo Machine

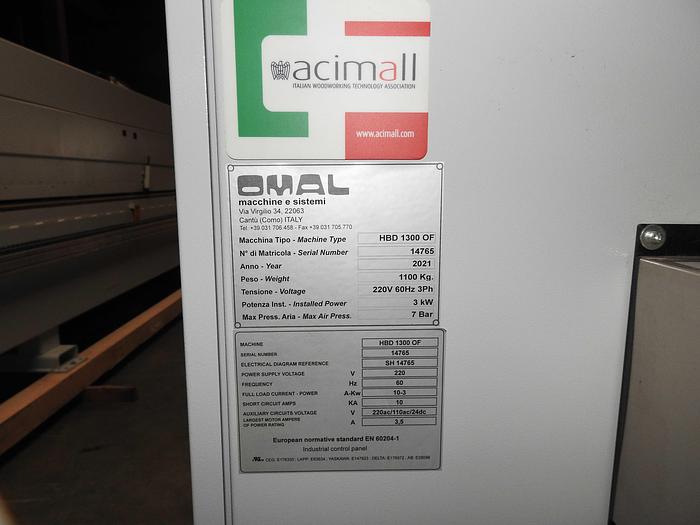

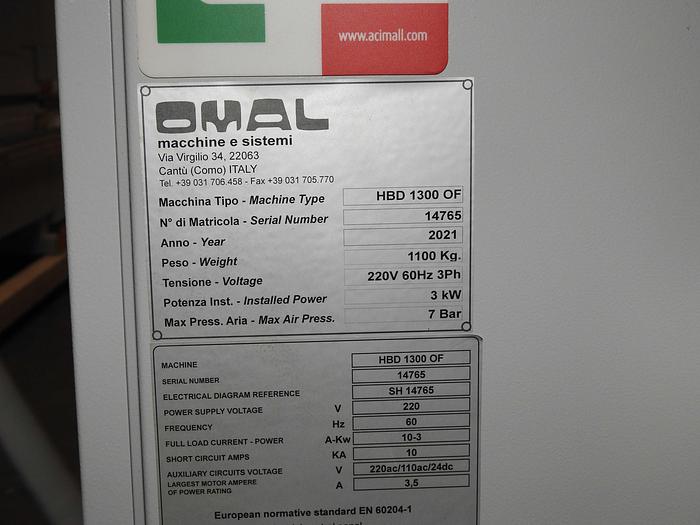

Serial Number14765
