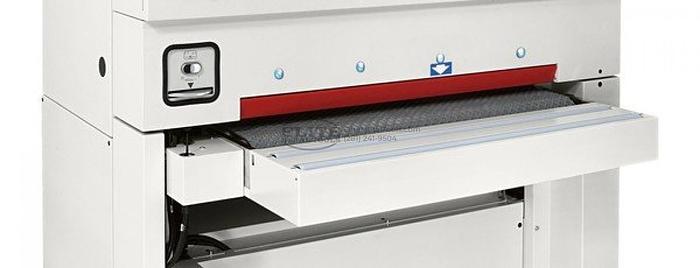

SCM Group DMC SD30 CS 110 43" Wide Belt Sander

SCM Group DMC SD30 CS 110 43" Wide Belt Sander

$27,620 (USD)

Tracy, CA

orCall 209 832-0100

Description

Description

The DMC SD 30 CS 110 is ideal for the craftsmen and the small woodworking companies. Solid wood calibrating and sanding and veneered panel sanding operations (also with honey-comb support), and also for any other sanding requirements. The availability of the electronic sectional pad on this model also provides the sanding operations on honey-comb veneered panels.

Features

  • “Mesar” sectional pad: The best finish with any material. Higher quality results due to the special shape of the sectors that allows the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of different thickness increases its versality.
  • “Logic SC” electronic programmer: Easily avoid mistakes. Simple and intuitive, allowing the operator to set all processing parameters in sequence and then launch them with the touch of a button. The possibility to store various work programs to retrieve the machine settings most commonly used makes it ideal.

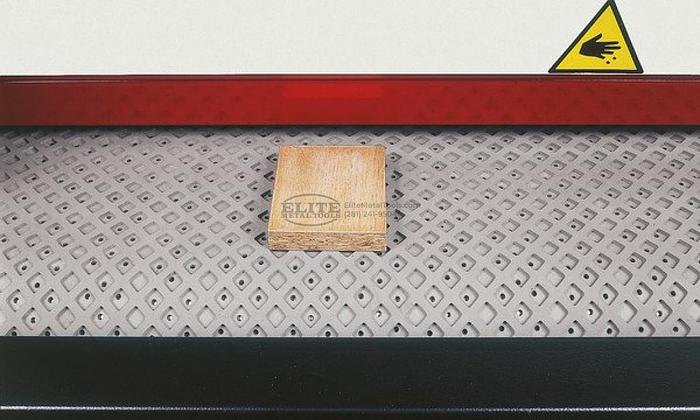

  • Diamond-shaped belt: No slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.
  • Led indicator for panel introduction: Simple and intuitive, communicating to the operator where and when the panel has to be introduced into the machine and optimizing the standard wear of the sanding belt; this ensures a better-quality finish and reduced machine costs.

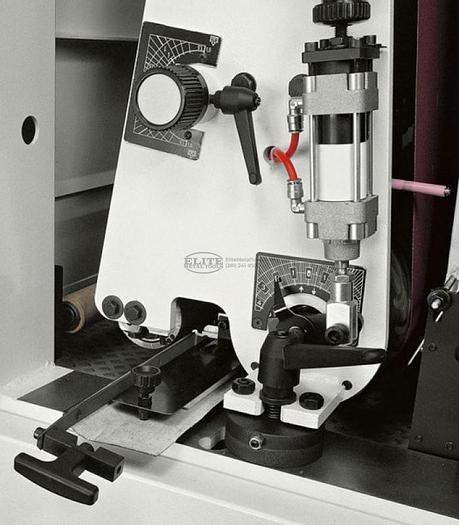

  • CS Version: The CS combined group is the secret of the DMC SD 30’s flexibility. The possibility to use the roller and the pad either simultaneously or independently of one another provides high quality results.

Specifications

  • Working Unit
  • Motor Hp: 24 HP
  • Motor Type: Single Speed
  • Abrasive Belt Speed: 16 mps
  • Drum Size: 120 mm (4.75”)
  • Drum Type: 85 Sh Rubber
  • Platen Size: 50 mm (2”)
  • Platens Included: Two
  • Abrasive Belt Length: 75”
  • Other Specs
  • Working Width: 1100 mm (43”)
  • Number of Heads Available: 1
  • Feed Motor: 1 HP
  • Feed Speed: 15 or 30 fpm
  • Maximum Work piece Thickness: 170 mm (6.69”)
  • Minimum Work piece Length: 12.5 inches
  • Abrasive Belt Size: 43” X 75”
  • Compressed Air Requirements: 6 Bar (88 PSI.)
  • Dust Outlets: 1 outlets @ 140 mm (5.5”)
  • Exhaust Requirements: 900 CFM
  • Power Requirements: 87 amps @ 230 Volts/3 phase


Specifications

ManufacturerSCM GROUP
ModelDMC SD30-CS110
ConditionNew
