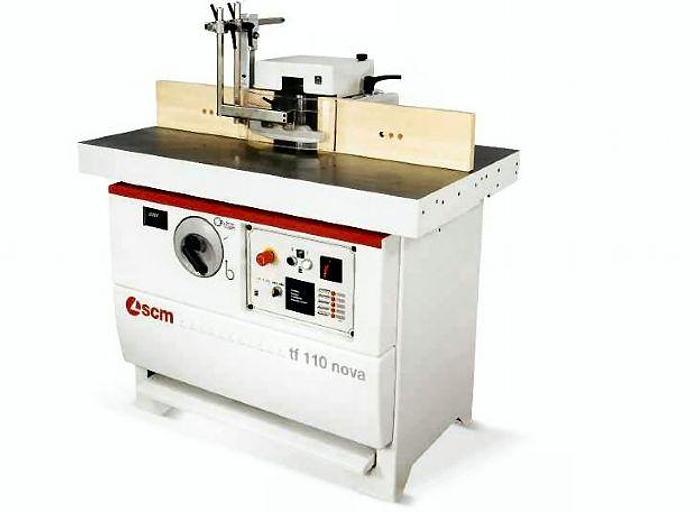

SCM Group SCM TF 110 Nova Shaper, Currently in Stock

SCM Group SCM TF 110 Nova Shaper, Currently in Stock

$12,085 (USD)

Tracy, CA

orCall 209 832-0100

Description

Description

Heavy Duty Shaper

A must for the serious woodworker, the Nova TF 110 is the SCM shaper that combines quality and value for your investment. It has a very robust structure and all the controls can be accessed on the front of the machine for easy use. A mechanical digital reader ensures the precision of the spindle adjustment.

Greater Tooling Flexibility

The Nova TF 110 has a healthy 5.5 inch tool capacity under the nut. Coupled with the digital indicator for the spindle height, this makes the SCM shapers perfect for the use of stacked tooling. For example, many woodworkers use a tooling package consisting of three cutters for making cabinet doors. The stile, rail, and panel cutters are all mounted on the same spindle. By raising or lowering the spindle, it is possible to perform all three operations without changing the cutter or the spindle. The five speed spindle further increases tooling flexibility

Large Shaper Hood

The Nova TF 110 features a large shaper hood with memory pins which make its placement repeatable. Both the infeed and outfeed fences are adjustable from the rear of the machine, and the increments are measurable via a scale next to the positioning knob.

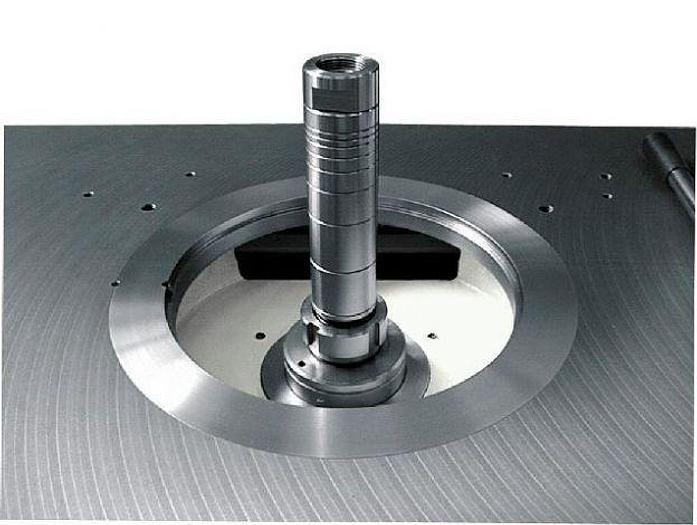

MK4 Interchangeable Tapered Spindles

A standard feature on the Nova TF 110 is the MK4 interchangeable spindle. This feature allows the use of different spindles for various tooling with different spindle diameters. An upgrade to a larger shaper does not mean that all tooling needs to be replaced. Special tools can continue to be used simply by changing out to a different spindle. A 1 1/4 inch spindle comes standard.

Major Features

  • 1 1/4 Inch interchangeable spindle
  • “T” Slot in the table w/ Mitre Gauge
  • 5 Spindle speeds from 3,000 to 10,000 rpm
  • Reverse rotation switch
  • 5.5” Below the nut
  • 5 Table insert rings
  • Mechanical readout of spindle height
  • Foot Pedal Controls for mechanical brake and spindle lock
  • Magnetic starter with overload protection
  • Low tension circuit (110v by transformer)
  • Tool kit with spare V-belt
  • Aluminum fences
  • Adjustable fence and guard assembly

Specifications

  • Motor Horsepower: 10 HP
  • Table Dimensions: 47.2” x 28.7” (1200mm x 730mm)
  • Table Height: 36.2” (920mm)
  • Working Height of Spindle (under the nut): 5.5” (140mm)
  • Max. Insert Opening: 12.59” (320mm)
  • Max. Tool Diameter: 9.8” (250mm)
  • Spindle Speeds: 3,000 / 4,500 / 6,000 / 7,000 / 10,000 RPM
  • Dust Outlet on Fence and Rear Base: 120mm each
  • Overall Dimensions (L x W x H): 47” x 39.1” x 40.7”
  • Shipping Weight: 1,206 lbs
  • Net Weight: 1,047 lbs
  • Electrical Requirements: 230V
  • Dust Extraction: 680 CFM x 2


Specifications

ManufacturerSCM Group
ModelTF110 Nova
Year2023
ConditionNew
