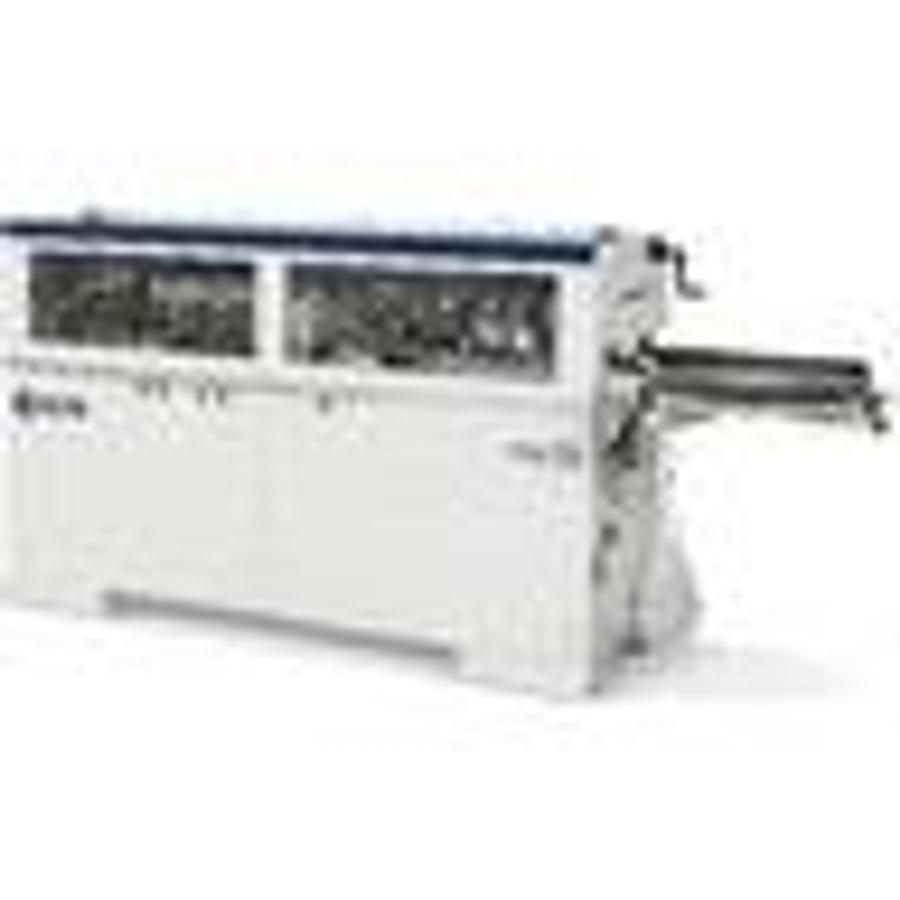

SCM Group SCM/MiniMax ME35TR3 Automatic Edgebander with Premill and Corner Rounding

SCM Group SCM/MiniMax ME35TR3 Automatic Edgebander with Premill and Corner Rounding

$35,265 (USD)

Location:Tracy, CA

orCall 209 832-0100

Description

Description

The Minimax ME 35TR3 is a 3-phase automatic edgebander with great flexibility for both thin and thick edges, intended to bridge the gap between a traditional small to midsize edgebander for woodworkers; to the more robust equipment used in the Classical line of products. Two of the key features are the pre-mill and corner rounding units. There is no competition in the U.S. market for such a small, versatile machine, with pre-mill or corner rounding that is so economical! This machine is meant to be used with melamine edges, PVC and ABS up to 3mm. This amazing machine boasts capacities usually only found on much larger and expensive machines. The ME 35TR3 comes with an anti-adhesive unit, pre-milling unit, endcutting/corner rounding, top and bottom trimming, edge scraping, glue scraping, and buffing unit, with 3mm edge processing tooling.

Standard Features

  • Control panel and interface on machine infeed side
  • Machine frame made of high rigidity ribbed steel to guarantee excellent support for the operating units
  • Top thick steel pressure beam with rubber coated wheels
  • Patented feed track
  • Manual adjustment of top beam (panel height) with positioning of the operating units according to the selected panel thickness
  • Numeric indicator of the selected panel thickness
  • Specific glue smoke exhaust outlet
  • Panel support roller which can be extended along the entire length of the machine
  • Safety enclosure hood
  • Electrical cabinet with new PLC and improved performance, 4-lines display, padlock capable main switch and
  • overload protection push buttons

Specifications

  • Worktable dimensions: 3000 x 525mm
  • Worktable height: 904mm
  • Thickness of rolled edges: 0.4 - 3mm
  • Min. to max. panel height: 8 - 50mm
  • Min. panel length/width with rolled edges: 120/110mm
  • Feed speed: 7 m/min
  • Feed motor power: 0.55 kW 3 Phase
  • Pneumatic operating pressure: 6.5 bar
  • Exhaust outlet glue pot: 60mm
  • Exhaust outlet pre-milling unit: 80mm (x2)
  • Exhaust outlet trimming unit: 60mm (x2)
  • Operating temperature: 20 - 190°C (68 - 374°F)


Specifications

ManufacturerSCM Group
ModelME35TR3
ConditionNew
