Maggi System 46 Double Row 46-Spindle Line Drill

Maggi System 46 Double Row 46-Spindle Line Drill

$14,550 (USD)

Location:Tracy, CA

orCall 209 832-0100

Description

$349 Flat Rate Shipping in the Continental United States

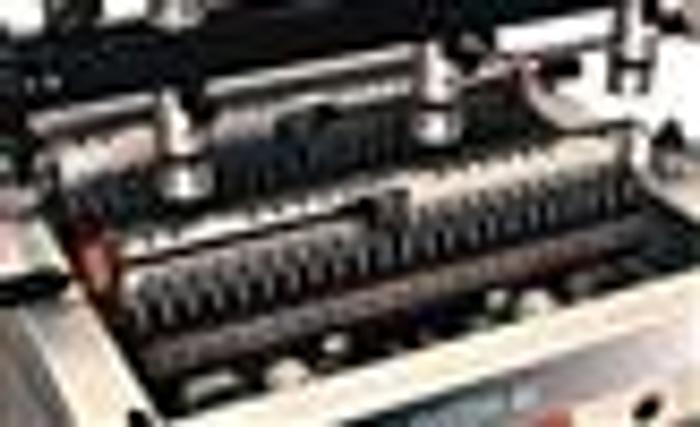

The Maggi System 46 Boring Machine provides  (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32" (704 mm).

  • Front end adjustment for quick and easy set-up.
  • (2) 1.5 HP 2,800 RPM motors; max.
  • Boring depth is 2-1/16" (55 mm).
  • Side depth counter system; extractable 400 mm support rollers for long panels.
  • Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm).
  • Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.
  • This machine can be used for single or double row line drilling.
  • Uses 24 LH (red) and 22 RH (black) boring bits.
  • Working air pressure 94 psi.
  • Voltage: 230V 3-Phase
  • Net weight: 820 lbs.; Crated weight: 940 lbs.


Specifications

ManufacturerMaggi
ModelSystem 46
ConditionNew
* Voltage230V 3-Phase
* Net weight820 lbs.; Crated weight
